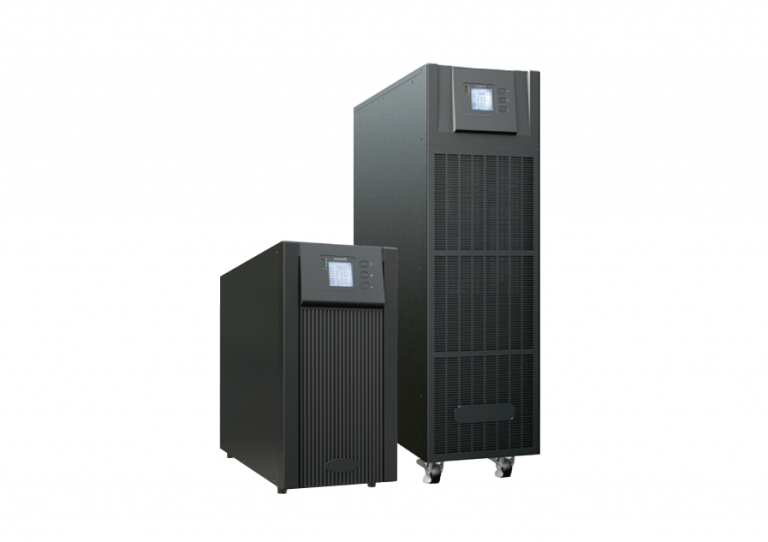

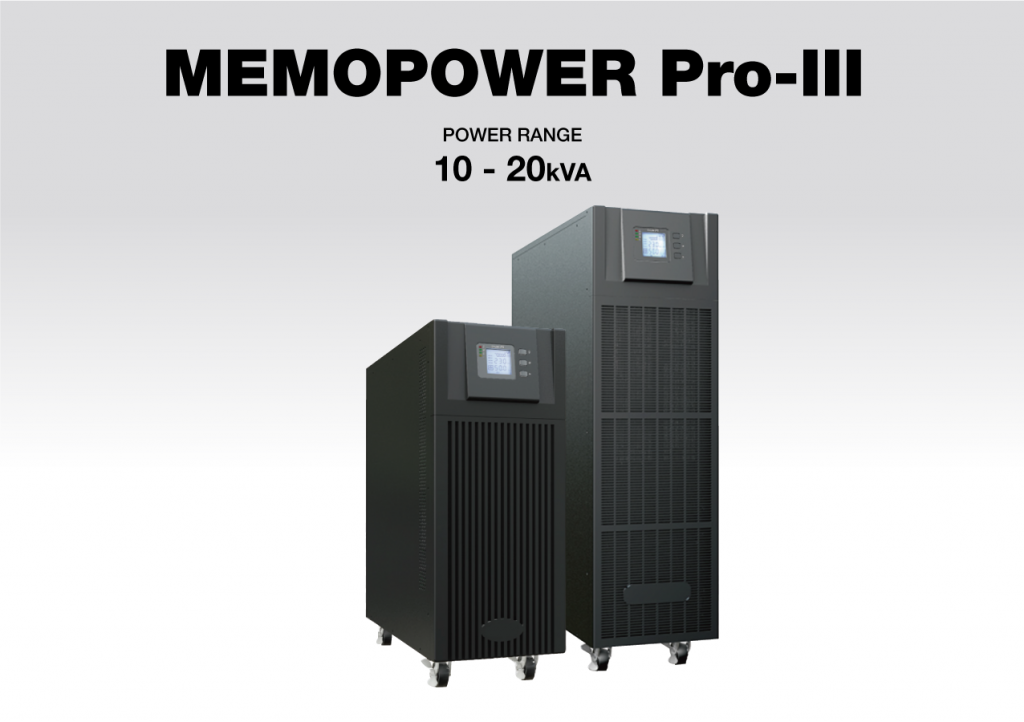

MEMOPOWER Pro-III 3:1
(10 kVA - 20 kVA)
MEMOPOWER Pro-III Series, online double conversion uninterruptible power supply, supported by N+X parallel redundancy, maximum 4 units in parallel, including a multiple communication interface: RS232/RS485/USB/EPO / Dry contact port (Relay card/SNMP card/Parallel cable/Battery temperature sensor optional), with a maximum charging current up to 18A (Settable).
Other related series
MEMOPOWER-III Three Phase to Single Phase (10 kVA – 20 kVA)
- N+X parallel redundancy, support maximum 4 units in parallel
- Online double conversion with DSP control
- Optimization battery group, the quantity of battery:16/18/20pcs (32~40pcs supportable)
- Wide input voltage range:208~478Vac
- Wide input frequency range :40Hz~70Hz
- Input current harmonic:<3%
- Dual input source (Optional)
- Maximum charging current up to 18A (Settable)
- Support 3/1 and 1/1 operation
- Generator compatible
- ECO mode operation for energy saving
- Design with maintenance switch
- Cold start
- Intelligent fan speed regulation
- Self-testing when UPS startup
- 50/60Hz frequency converter mode
- Colorful 2.4 inch TFT LCD display and 7 inch LCD display LCD are optional
- Multiple protection function: short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage and
- fan fault alarm
- Multiple communication interface: RS232/RS485/USB/EPO/Dry contact port (Relay card/SNMP card/Parallel cable/Battery temperature sensor optional)
