POWERCOMPACT3020

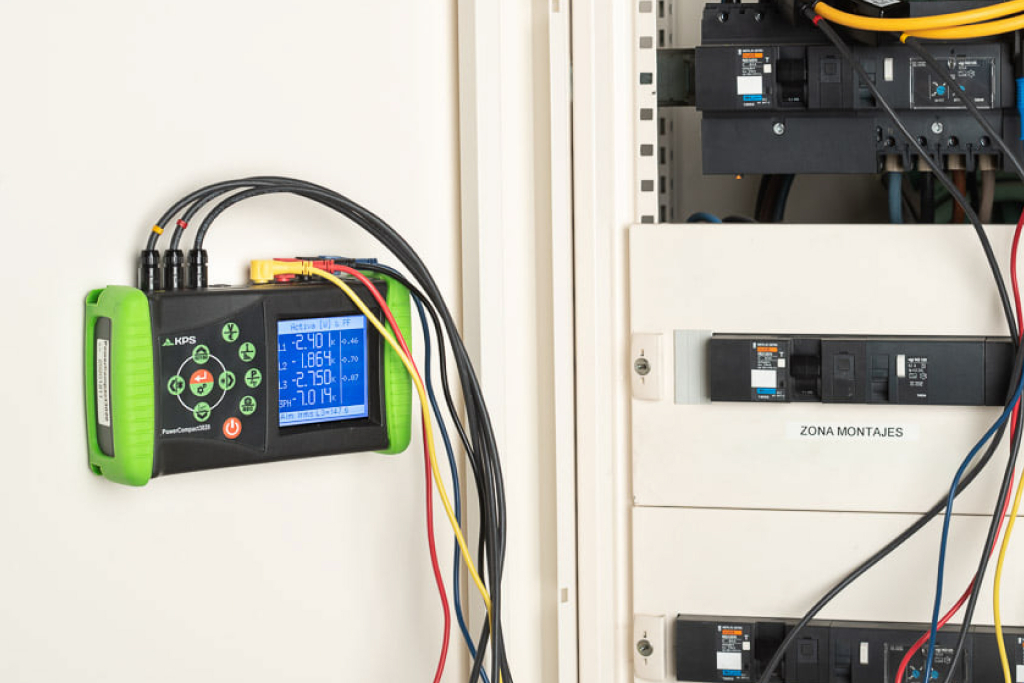

POWERCOMPACT3020 is a powerful, portable network analyzer developed for professional analysis of consumption and power quality of the most complex electrical networks. It can be used on single-phase, two-phase, three-phase (balanced and unbalanced) networks, low and medium voltage. The advanced features and analysis software supplied makes it a suitable tool to the most demanding professional needs.
|
Power supply |
4xAA NiMh 2100mAh batteries |
|
AC Voltage |
Phase-Phase: 1000V AC / Phase-Neutral: 600V AC |
|
DC Voltage |
10V – 1400V DC |
|
AC current |
3000A |
|
DC current |
600A |
|
Power |
999GW, GVAr, GVA |
|
Power Factor |
Yes |
|
Harmonics |
Up to 50th order |
|
Interruptions |
Yes |
|
DIPS |
Yes |
|
Swells |
Yes |
|
Overcurrents |
Yes |
|
Inrush current |
Yes |
|
Overvoltage |
Yes |
|
Unbalance |
Yes |
|
Alarms |
Yes |
|
Energy cost |
Yes |
|
Data storage |
Internal: 64Kb / External: 8GB MicroSD (included) |
|
PC connectivity |
Via USB |
|
Safety category |
CAT III 1000V / CAT IV 600V |
