KPS PA440

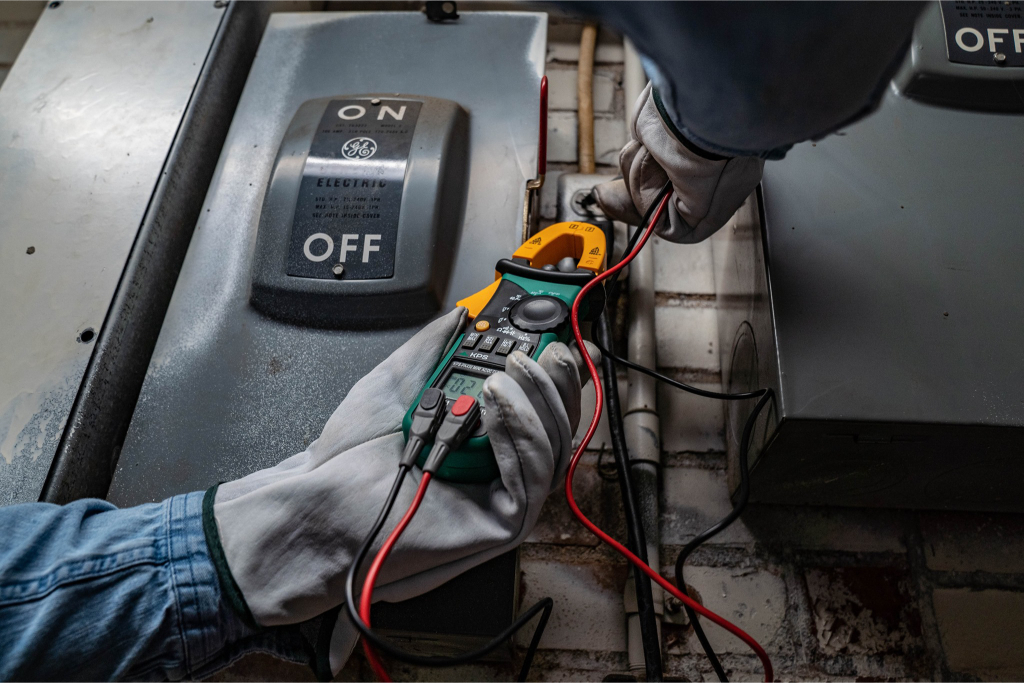

When the professional wants to perform current measurements quickly and easily, the ideal instrument is the clamp meter. This instrument allows, without the need to disconnect the circuit to be measured, to carry out the appropriate measurements with high precision. To measure current, the cable is clamped with the clamp jaw.
KPS has developed a range of clamp meters for special applications, which cover the requirements for the professionals working on industrial, HVAC and solar sectors.
Jaw Size: ⌀ 12mm / 0.5″
Voltage: DC 600V / AC 600V
Current: DC 1200μA / AC 200A
KPS PA440 Key Features:
- Display 6000 counts
- Jaw Opening Ф12mm/0.5″
- Auto & Manual Ranging
- Auto Power Off
- Non-Contact Voltage Detector
- Diode Open Voltage 3.2V
- Continuity Buzzer <50Ω
- Data Hold
- Display Backlight
- Work Light
- Low Battery Display
|
Specifications |
Range |
Resolution |
Accuracy |
|
DC Voltage |
600mV/6V/60V/600V |
0.1mV/0.001V/0.01V/0.1V |
±(0.7%+3) |
|
AC Voltage |
6V/60V/600V |
0.001V/0.01V/0.1V |
±(0.8%+3) |
|
LO-Z(DCV/ACV) |
1V~600V |
0.001V |
±(2.0%+3) |
|
DC Current |
600uA/1000uA |
0.1uA/1uA |
±(1.0%+4) |
|
AC Current |
200A |
0.1A |
±(3.0%+3) |
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ |
0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ |
±(0.8%+3) |
|
6MΩ/60MΩ |
0.001MΩ/0.01MΩ |
±(1.2%+3) |
|
|
Capacitance |
60nF/600nF/6µF/60µF |
0.01nF/0.1nF/0.001µF |
±(4.0%+5) |
|
600µF/6000µF/60mF |
0.01µF/0.1µF/1µF/0.01mF |
±(4.0%+5) |
|
|
Frequency |
60Hz/600Hz/6kHz/60kHz |
0.01Hz/0.1Hz/0.001kHz/0.01kHz |
±(0.3%+5) |
|
(Hz/Duty) |
600kHz/6MHz/60MHz |
0.1kHz/0.001MHz/0.01MHz |
±(0.3%+5) |
|
Frequency (A) |
100Hz/1000Hz |
0.01Hz/0.1Hz |
±(1.5%+5) |
|
Frequency (V) |
100Hz/1000Hz/10kHz |
0.01Hz/0.1Hz/0.001kHz |
±(1.5%+5) |
|
Duty Cycle |
5%~95% |
0.10% |
±(0.3%) |
|
Temperature |
-20℃~0℃/-4℉~32℉ |
1℃/1℉ |
±(3.0%+2) |
|
0℃~400℃/32℉~752℉ |
1℃/1℉ |
±(2.0%+2) |
