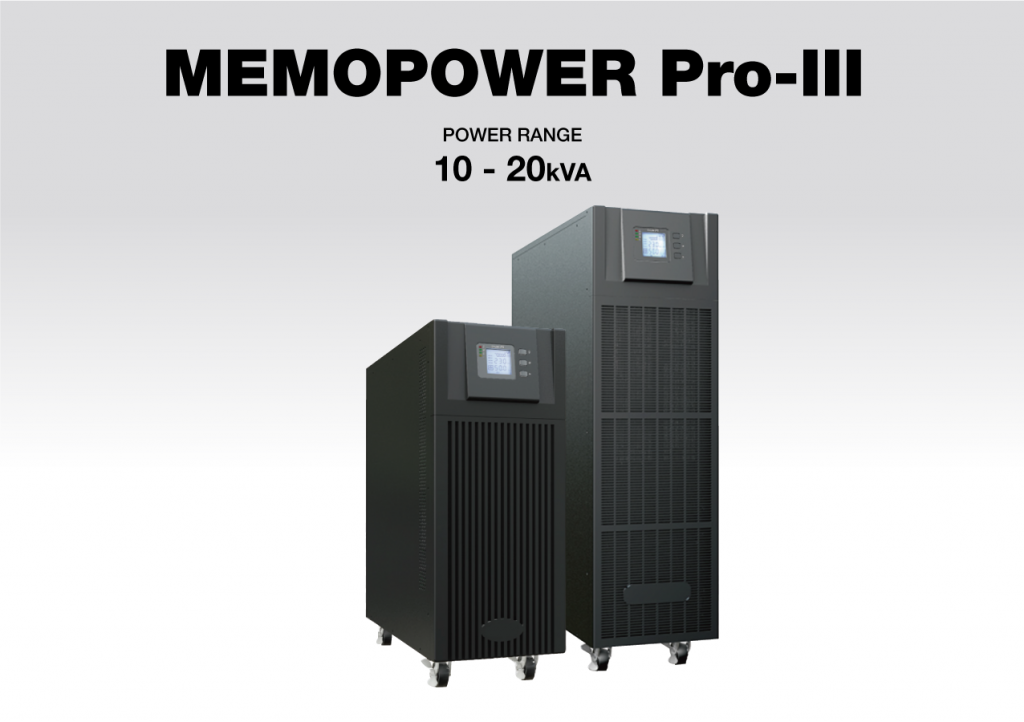

Two black MEMOPOWER Pro-III units with digital screens, set on a light gray background. The text above reads "MEMOPOWER Pro-III" and "Power Range 10 - 20kVA.

MEMOPOWER Pro-III 3:1
(10 kVA - 20 kVA)

MEMOPOWER Pro-III Series, online double conversion uninterruptible power supply, supported by  N+X parallel redundancy, maximum 4 units in parallel, including a multiple communication interface: RS232/RS485/USB/EPO / Dry contact port (Relay card/SNMP card/Parallel cable/Battery temperature sensor optional), with a maximum charging current up to 18A (Settable).

Other related series

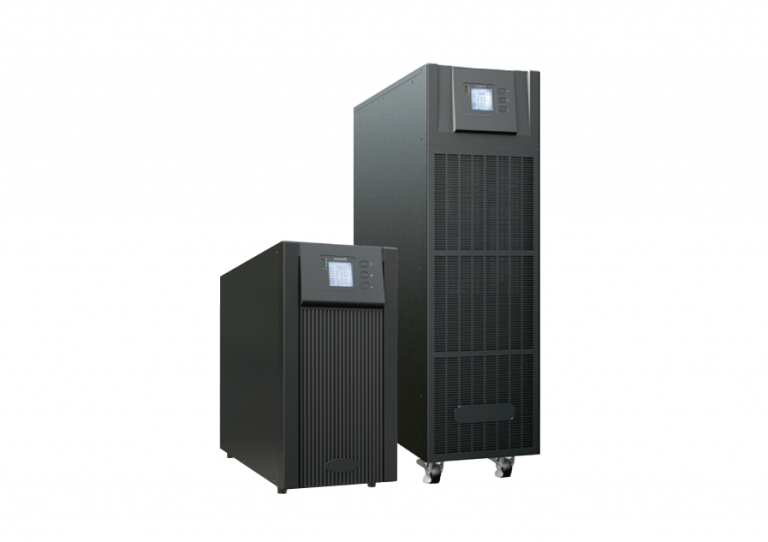

Two black tower-style uninterruptible power supply (UPS) units. The smaller unit is on the left, and the larger one is on the right with ventilation grills and display screens on their front panels. The larger unit has wheels.

MEMOPOWER-III Three Phase to Single Phase (10 kVA – 20 kVA)

  • N+X parallel redundancy, support maximum 4 units in parallel
  • Online double conversion with DSP control
  • Optimization battery group, the quantity of battery:16/18/20pcs (32~40pcs supportable)
  • Wide input voltage range:208~478Vac
  • Wide input frequency range :40Hz~70Hz
  • Input current harmonic:<3%
  • Dual input source (Optional)
  • Maximum charging current up to 18A (Settable)
  • Support 3/1 and 1/1 operation
  • Generator compatible
  • ECO mode operation for energy saving
  • Design with maintenance switch
  • Cold start
  • Intelligent fan speed regulation
  • Self-testing when UPS startup
  • 50/60Hz frequency converter mode
  • Colorful 2.4 inch TFT LCD display and 7 inch LCD display LCD are optional
  • Multiple protection function: short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage and
  • fan fault alarm
  • Multiple communication interface: RS232/RS485/USB/EPO/Dry contact port (Relay card/SNMP card/Parallel cable/Battery temperature sensor optional)
